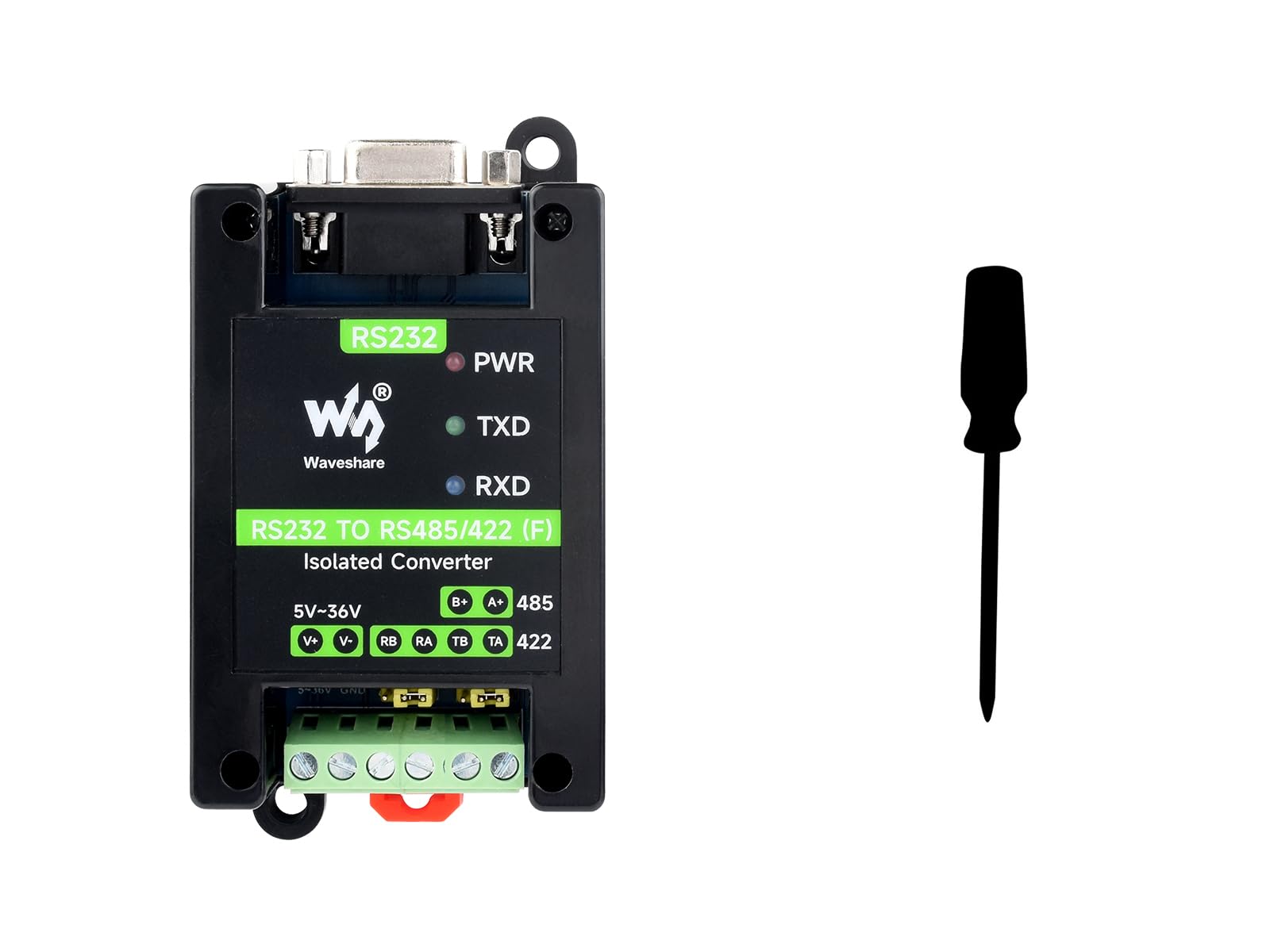

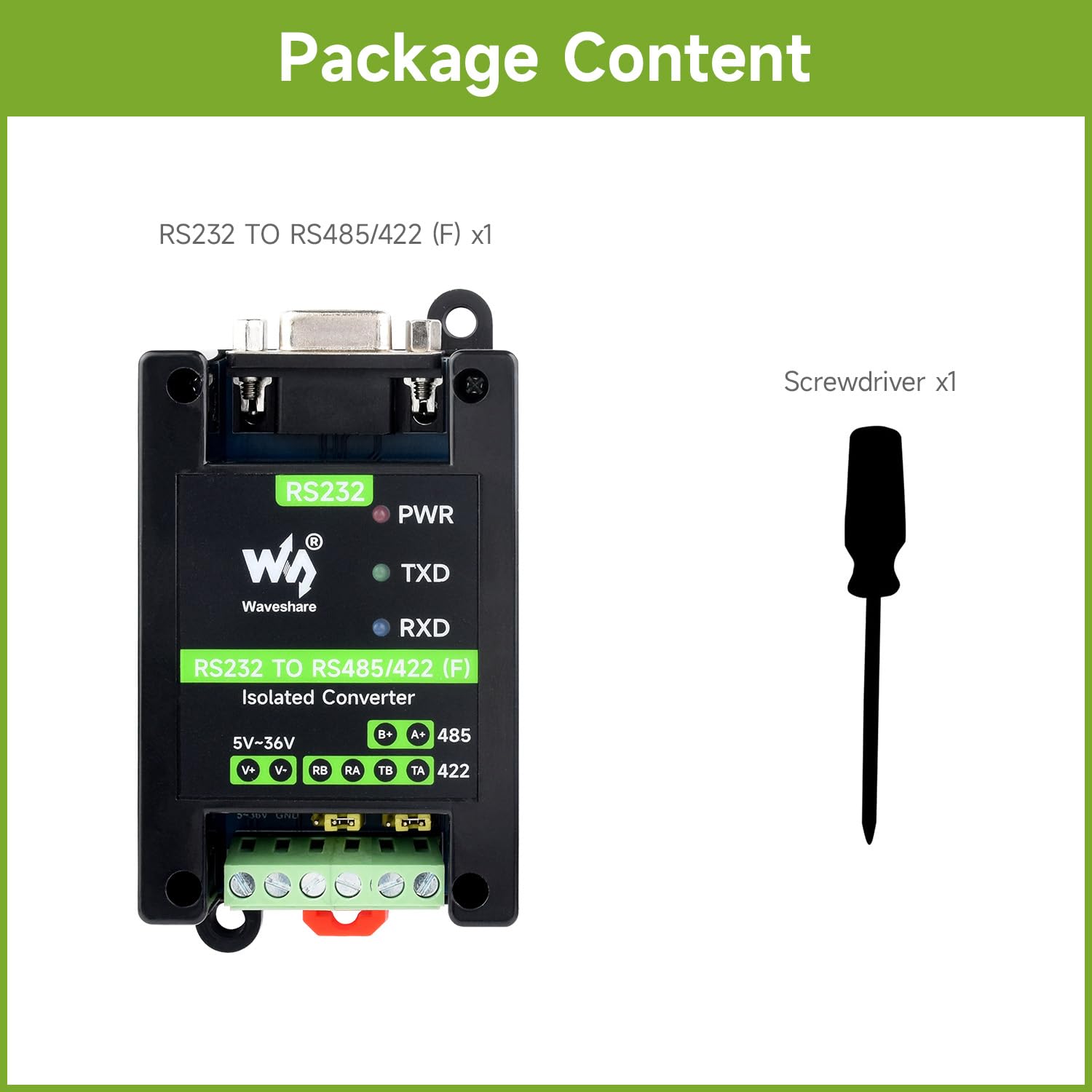

Waveshare RS232 To RS485/422 Active Digital Isolated Converter, Onboard SP3232EEN&SP485EEN Chip, RS232 DB9 Female Port, for Industrial Control Equipment&High Communication Requirement Application

Marque: Waveshare
Nombre de broches: 13
Type d'interface: Série
Fabricant: Waveshare

- RS232 DB9 female port. Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility. Stable transmission at the rate of 300~921600bps
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection. Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper. Onboard power supply screw terminal, allows 5V~36V DC wide range input
- 3 LEDs for indicating the power and transceiver status. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
