Waveshare HRB8825 Stepper Motor Hat Compatible with Raspberry Pi Drives Two Stepper Motors Up to 1/32 Microstepping for 3D Printer Sculpturing Machine and Mechanical Arm

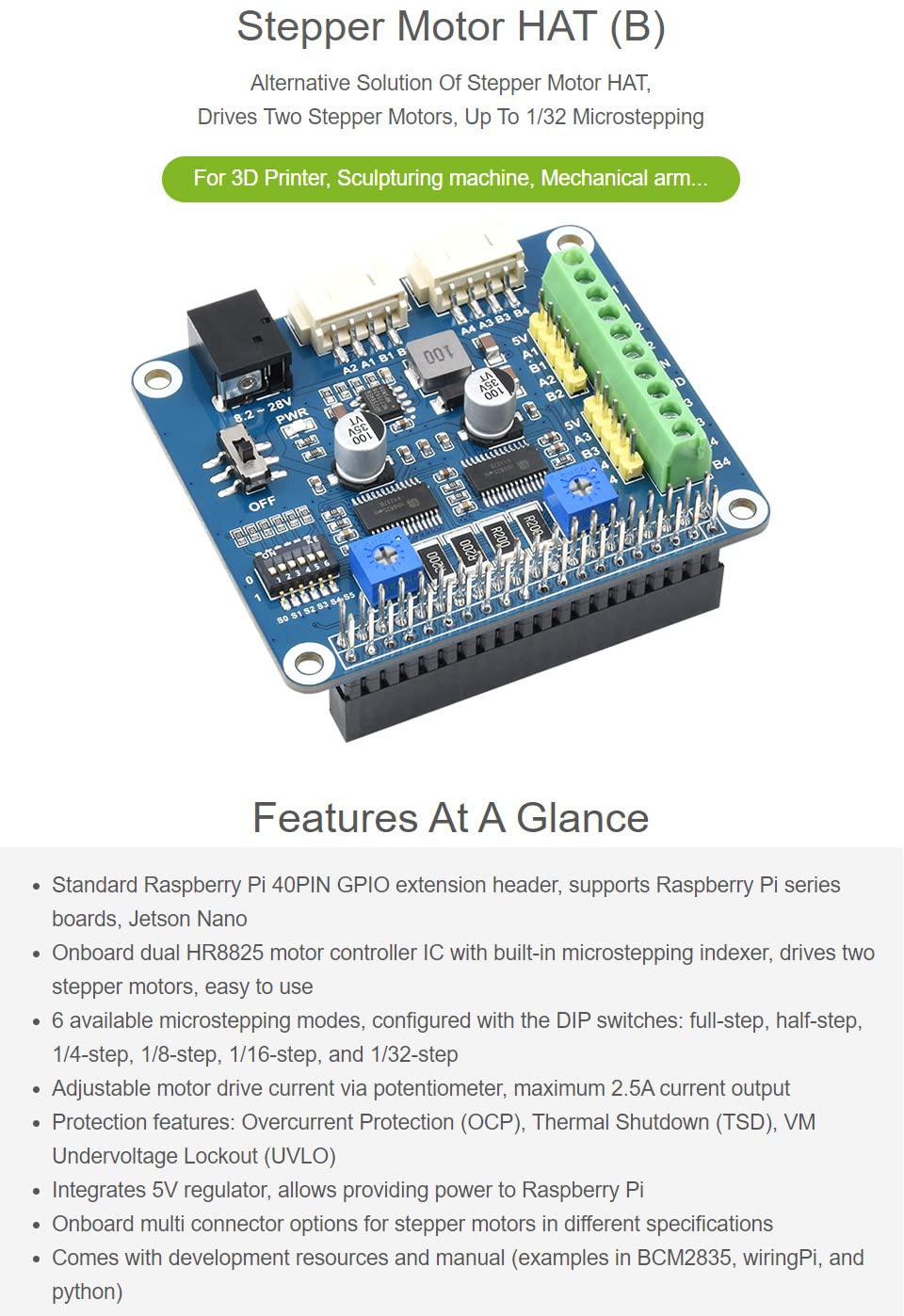

Product Overview

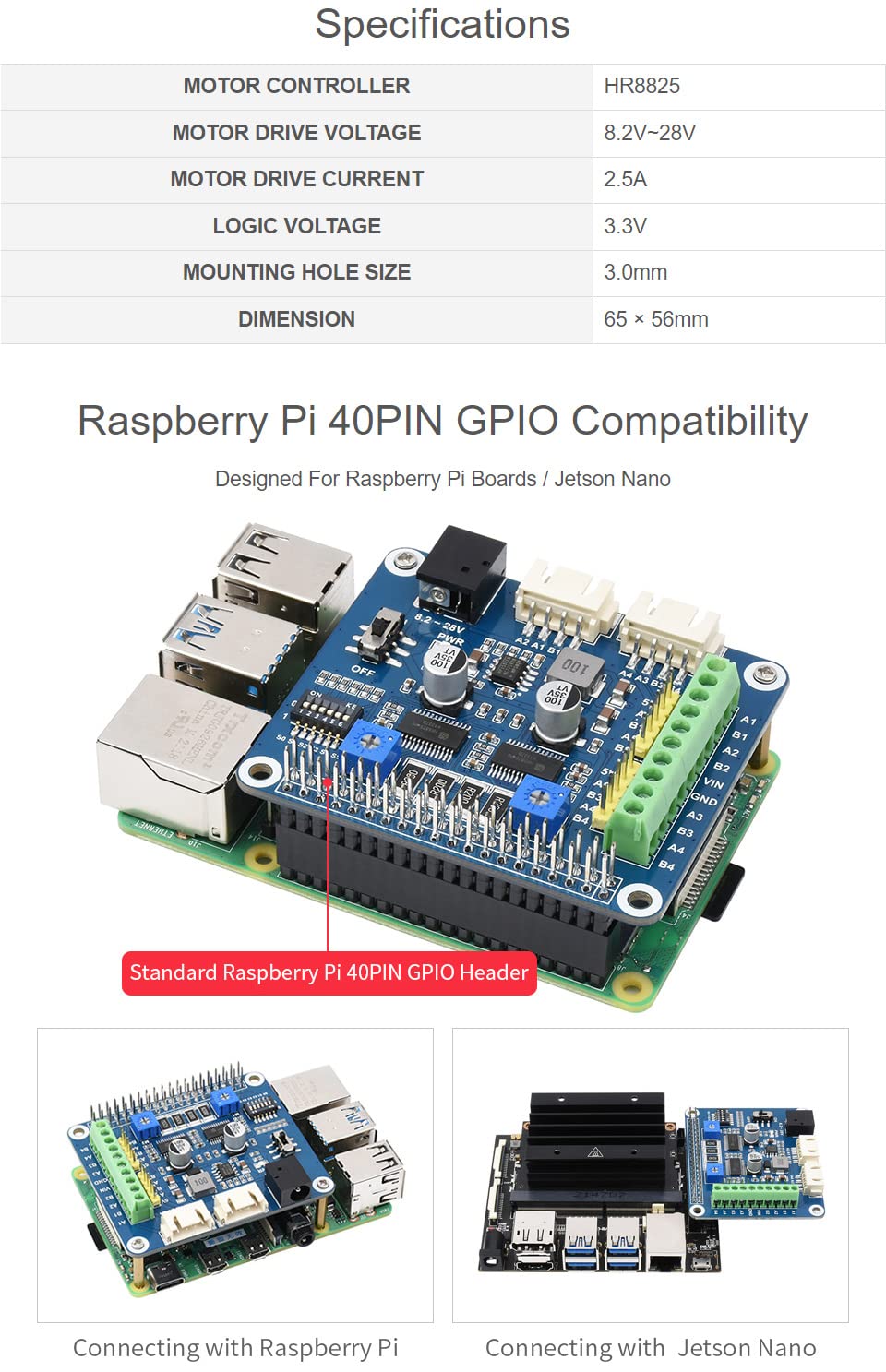

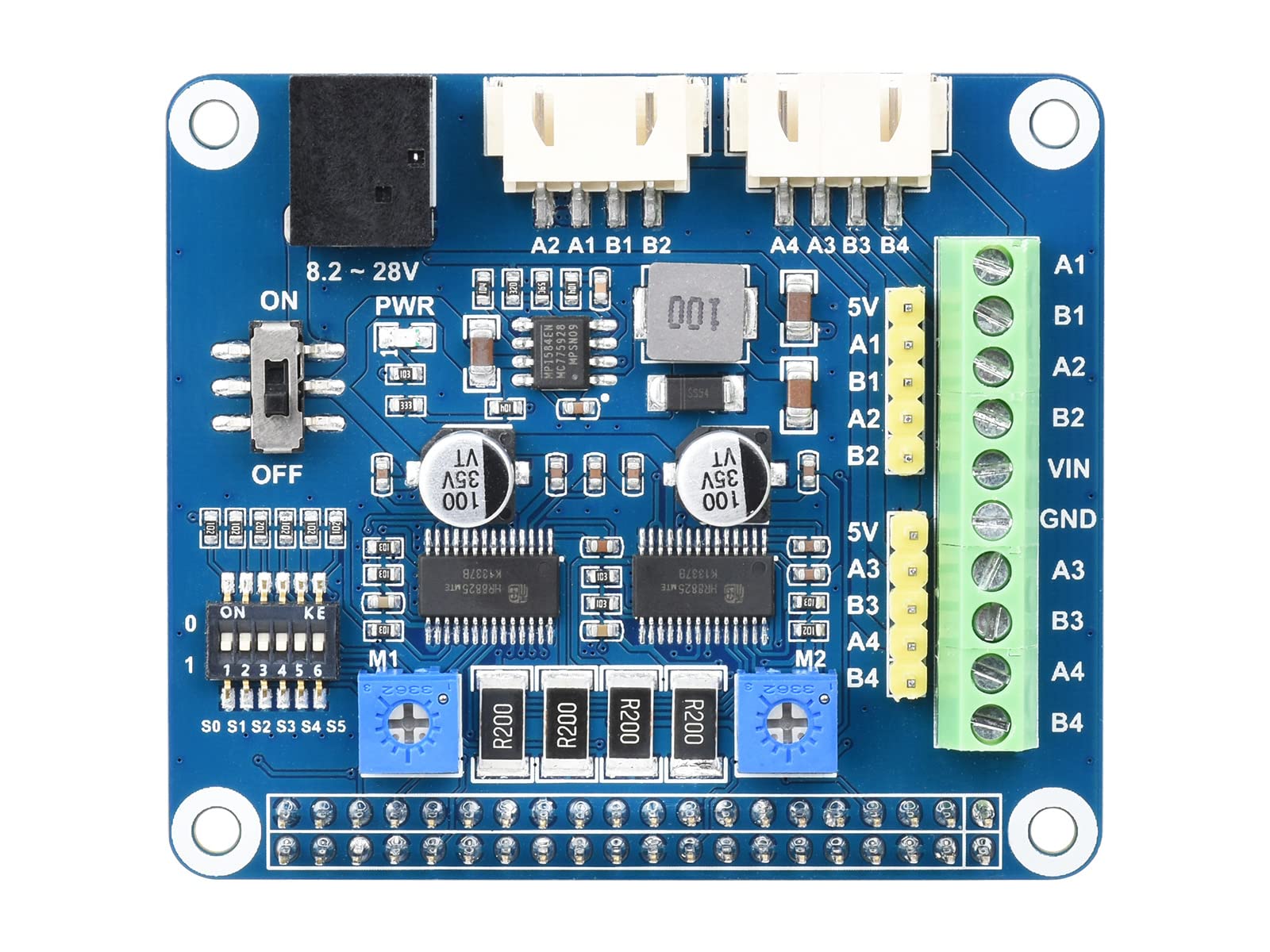

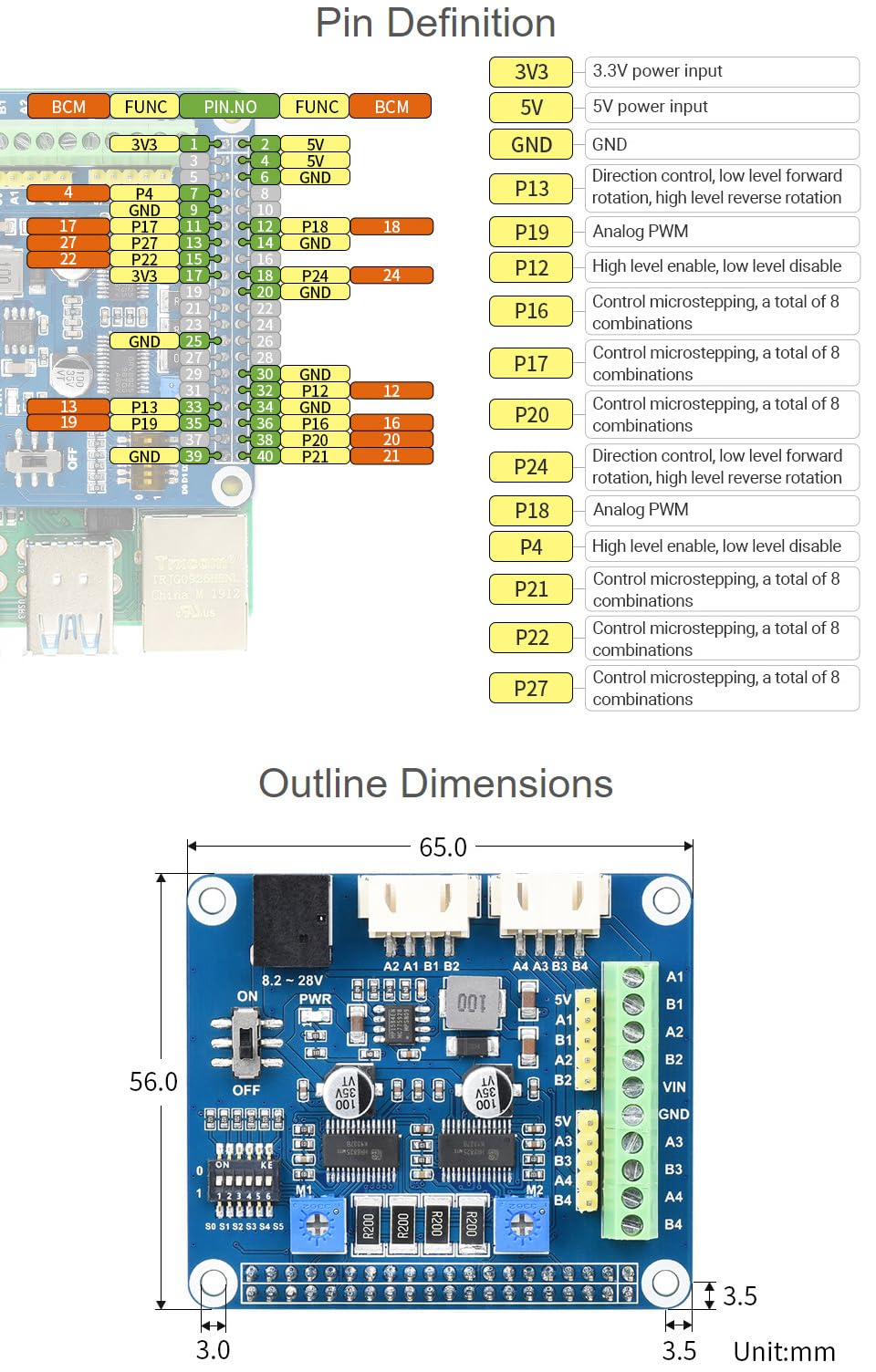

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use.

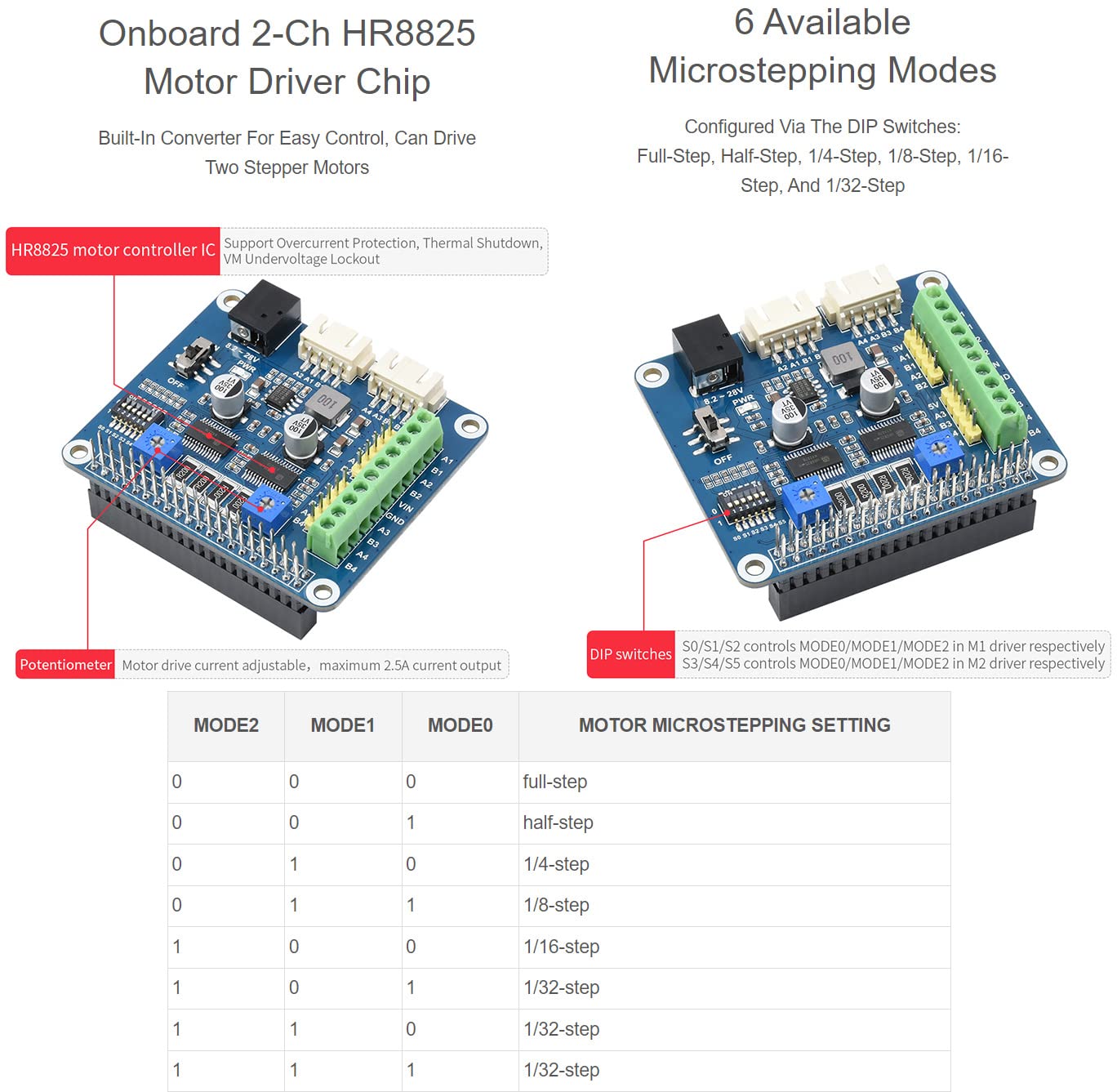

- 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
- Adjustable motor drive current via potentiometer, maximum 2.5A current output. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO).

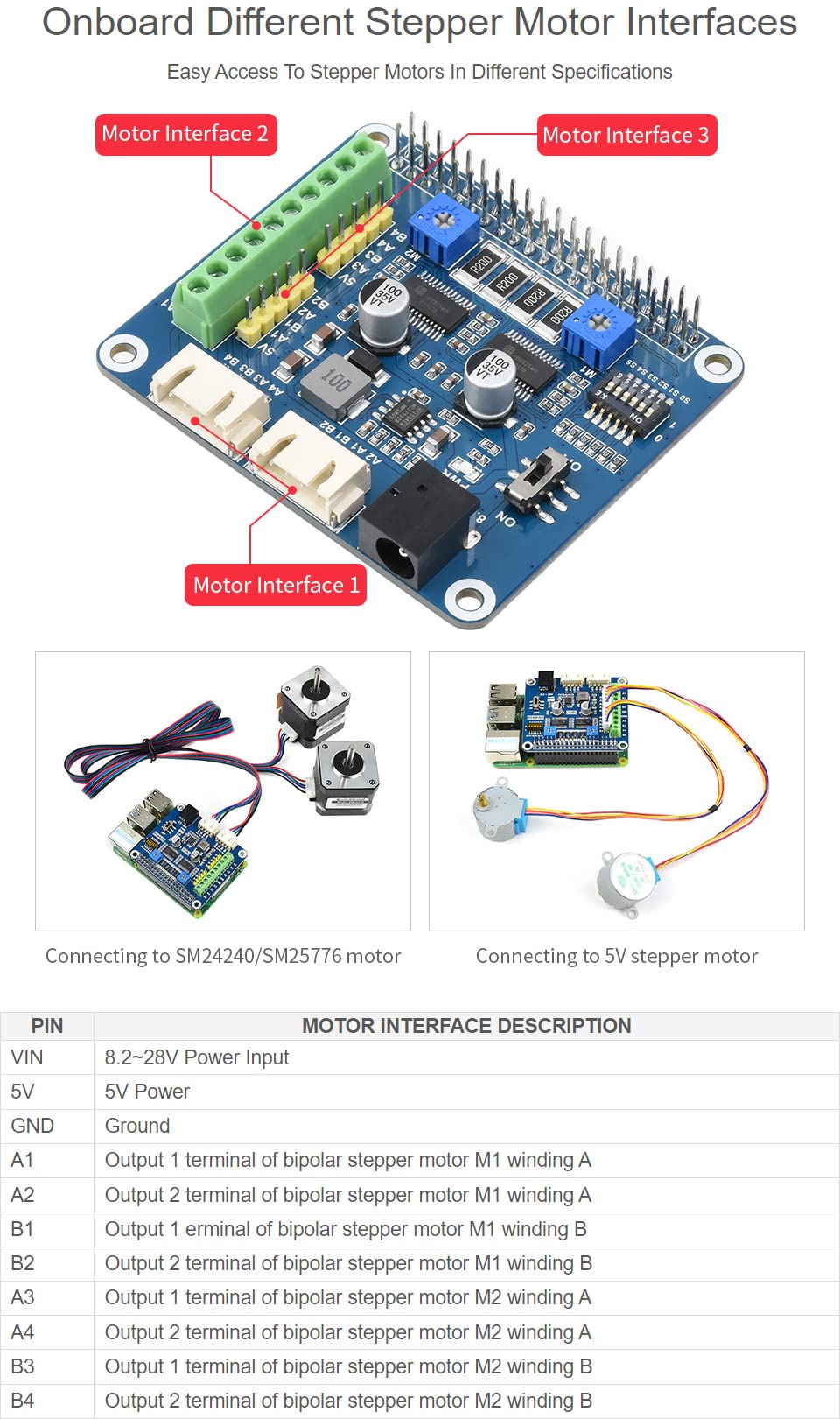

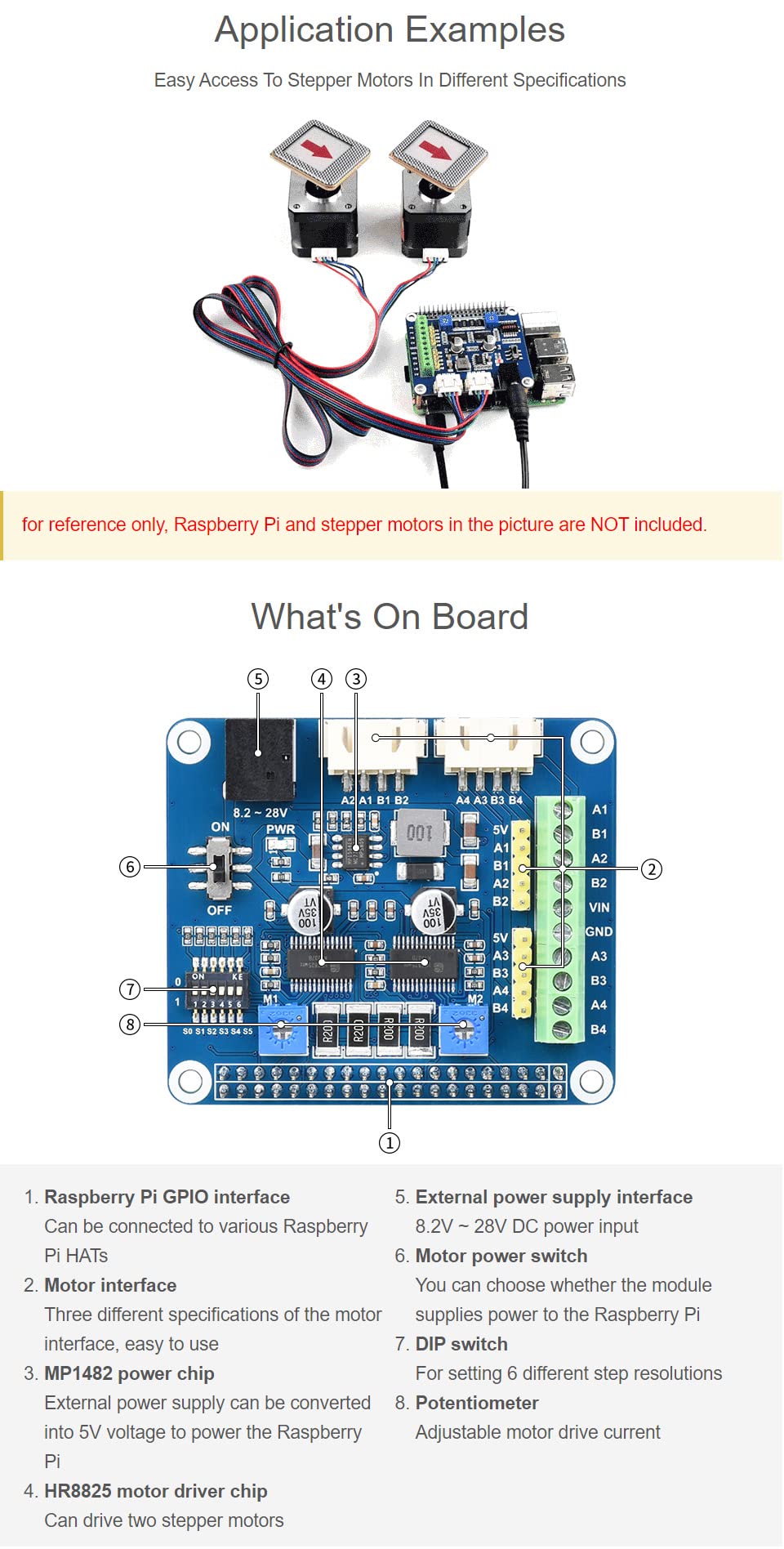

- Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications.
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python).
