Waveshare ESP32-S3 RGB LCD Driver Board, Equipped with 32-Bit 240MHz LX7 Dual-Core Processor, 8MB PS-RAM and Flash, Wi-F & Blue-T Support, Driver Board Only

Marque: Waveshare
Nom de modèle: ESP32-S3-LCD-Driver-Board
Fabricant de CPU: Espressif
Norme de communication sans fil: Fréquence radio de 2,4 GHz
Appareils compatibles: Tout appareil avec écran LCD RVB compatible
Technologie de mémoire RAM: DRAM
Nombre de processeurs: 2

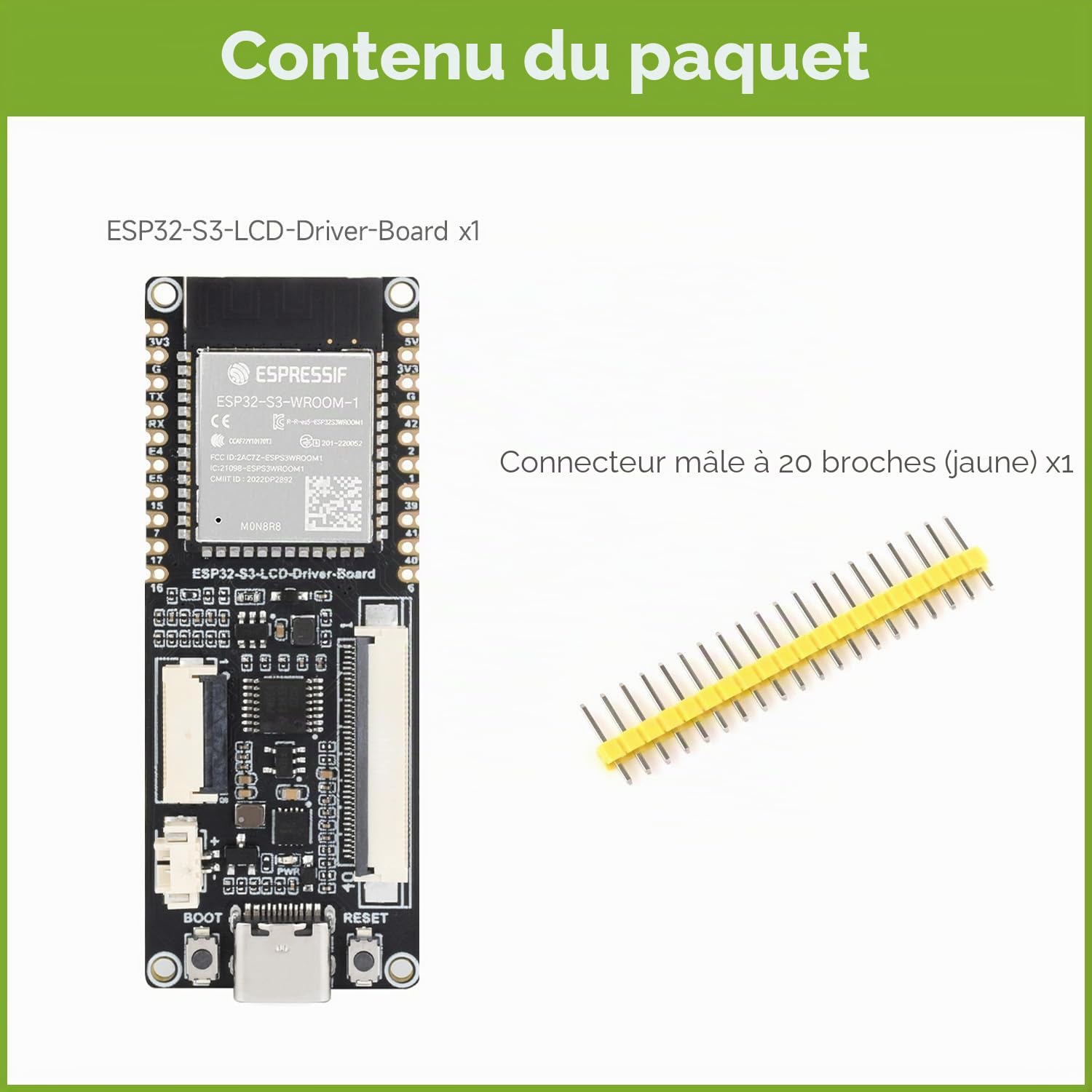

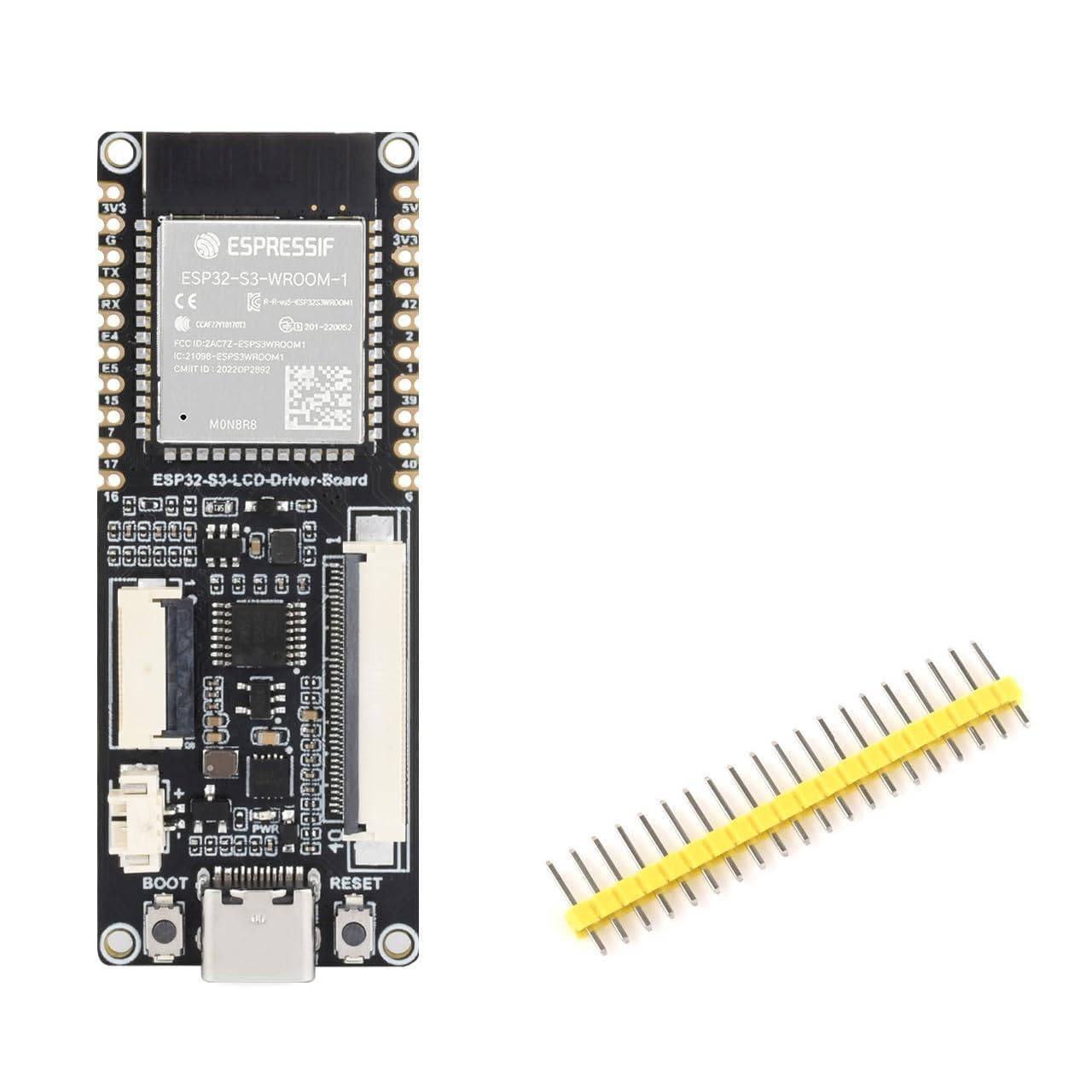

- This is the RGB LCD driver board only, not include any size touch LCD. For more detailed part list, please refer to the Package Content image .

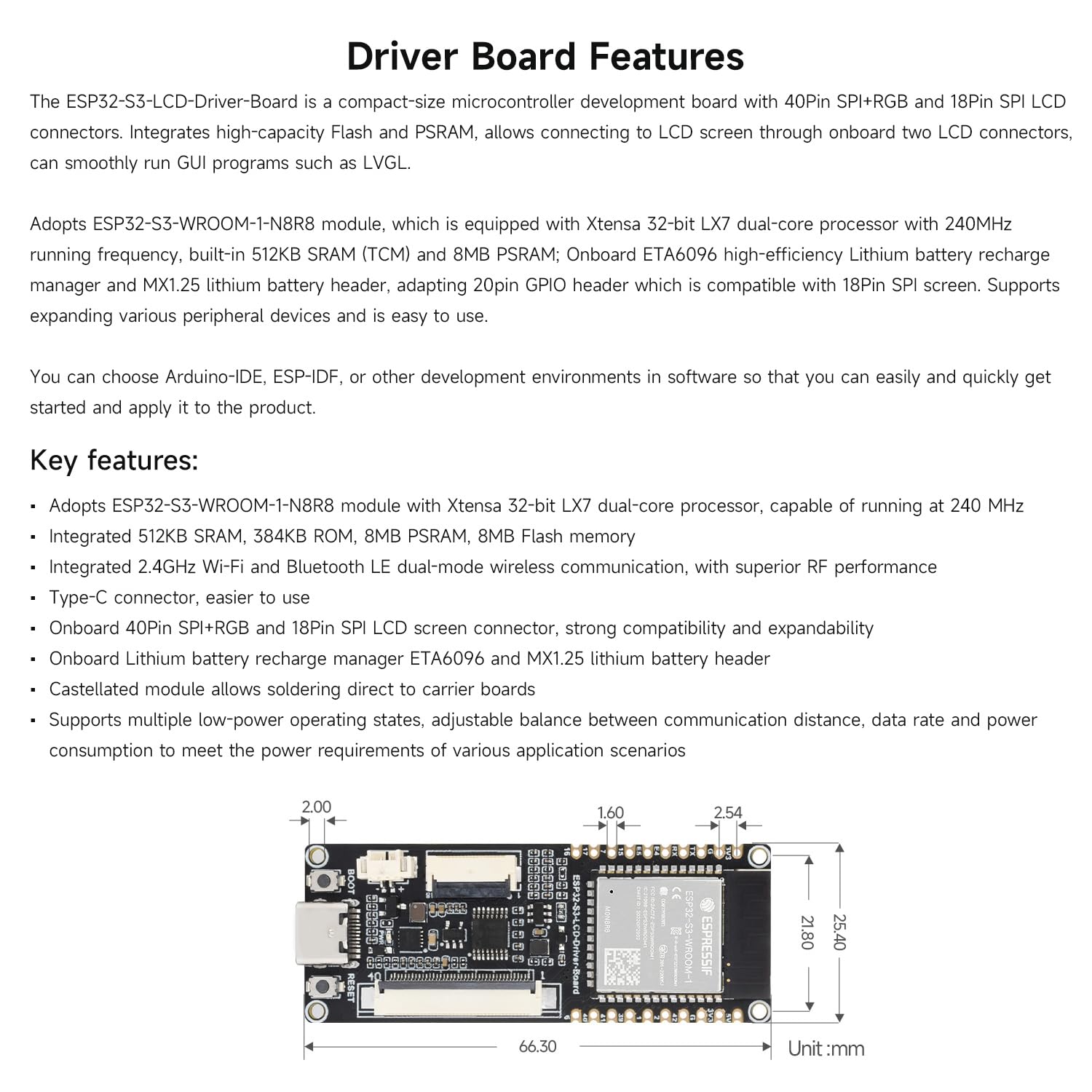

- Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB S-RAM, 384KB ROM, 8MB PS-RAM, 8MB Flash memory.
- Integrated 2.4GHz W-Fi and Blue-T LE dual-mode wire-less communication, with superior RF performance. Type-C connector, easier to use.

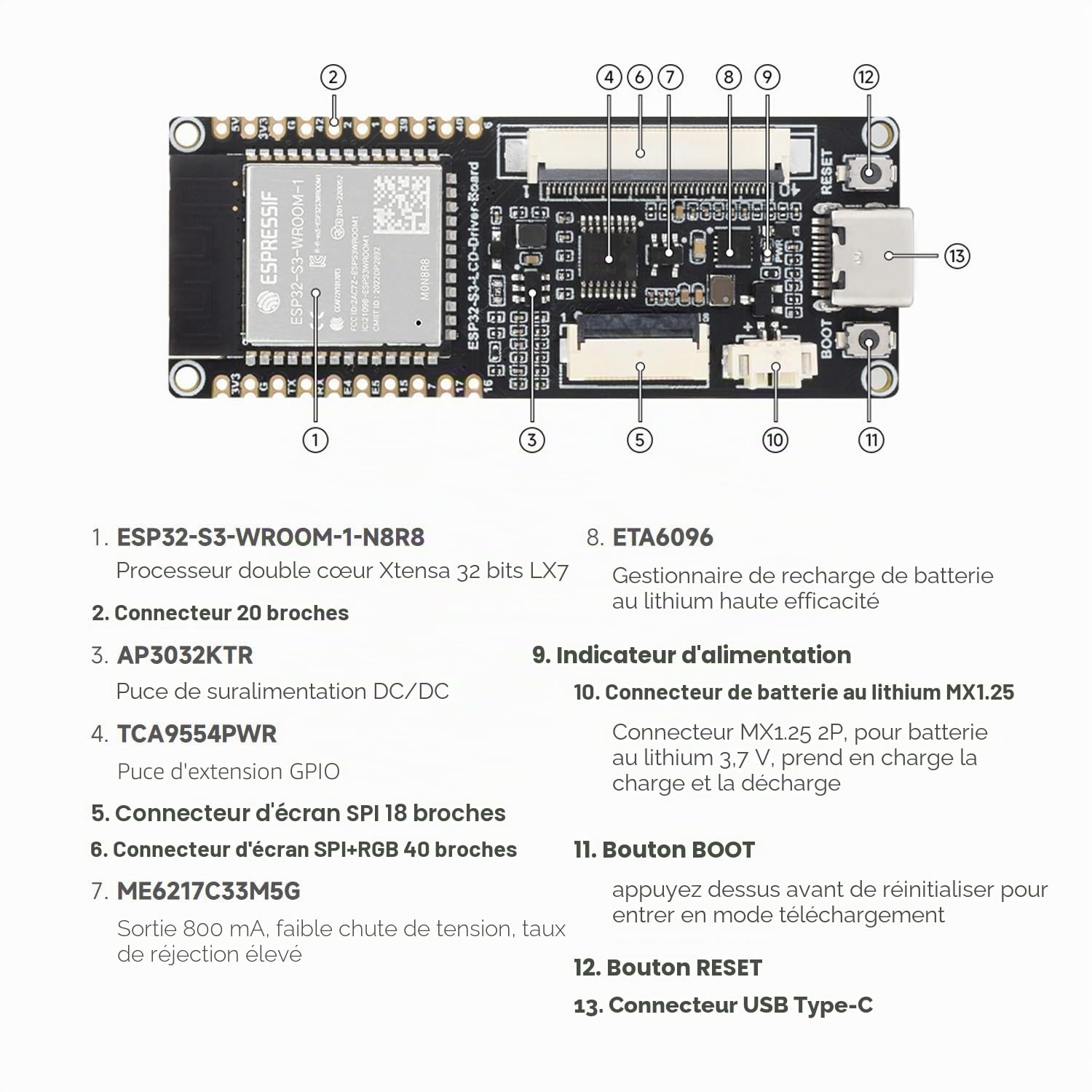

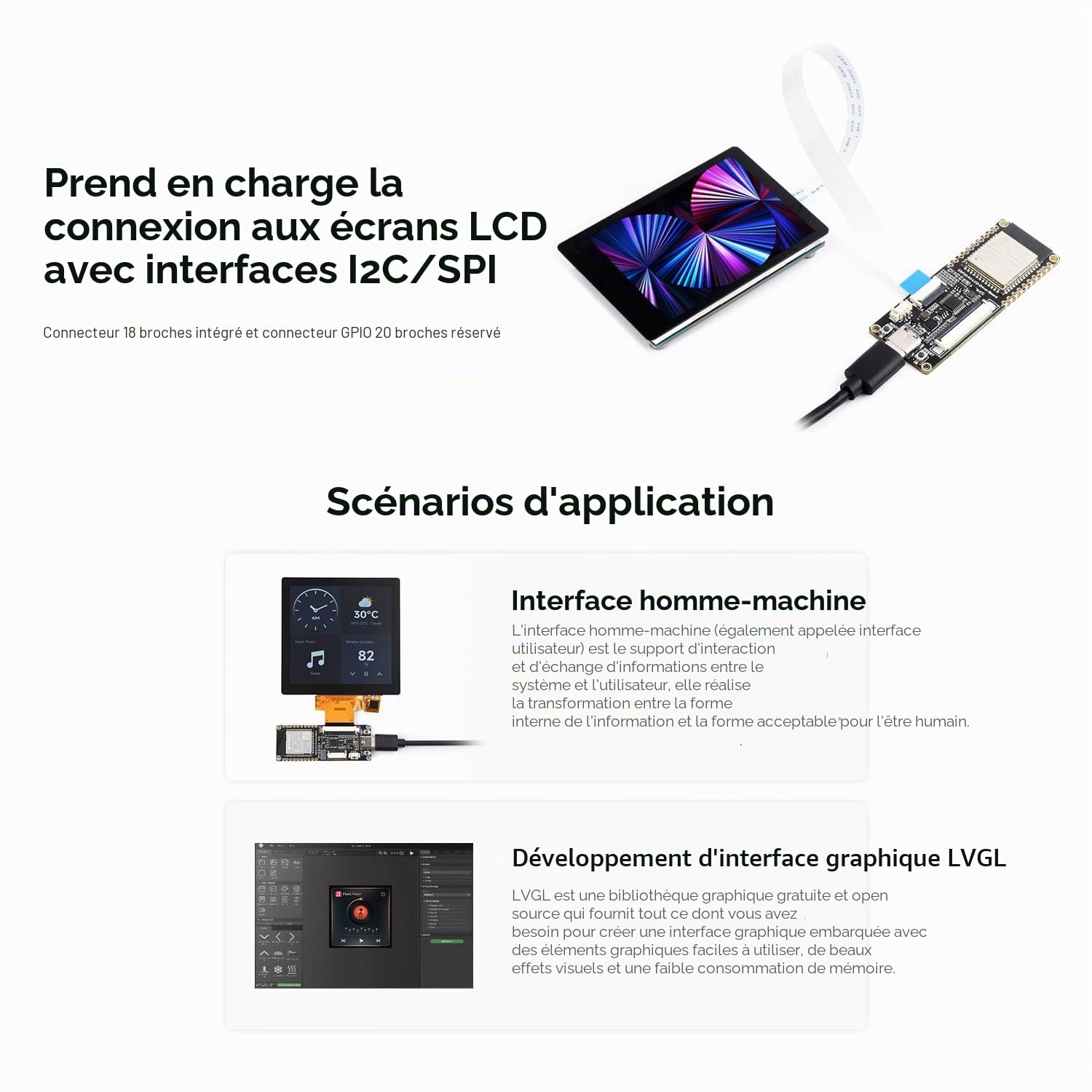

- Onboard 40Pin SPI+RGB and 18Pin SPI LCD screen connector, strong compatibility and expandability Onboard Lithium batt recharge manager ETA6096 and MX1.25 lithium batt header
- Castellated module allows soldering direct to carrier boards Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
