Waveshare ESP32-S3 2inch Capacitive Touch Display Development Board, 240x320, IPS, 32-Bit LX7 2-Core Processor, Up to 240MHz Frequency, Support WiFi BT, Support OV5640 5MP Camera Module(Not Included)

Marque: Waveshare
Nom de modèle: Waveshare ESP32-S3 2inch Capacitive Touch Display Development Board
Taille de la mémoire RAM installée: 8 MB
Capacité de stockage mémoire: 16 MB
Vitesse du CPU: 240 MHz
Technologie de connectivité: Wi-Fi, Bluetooth, USB, SPI, I2C

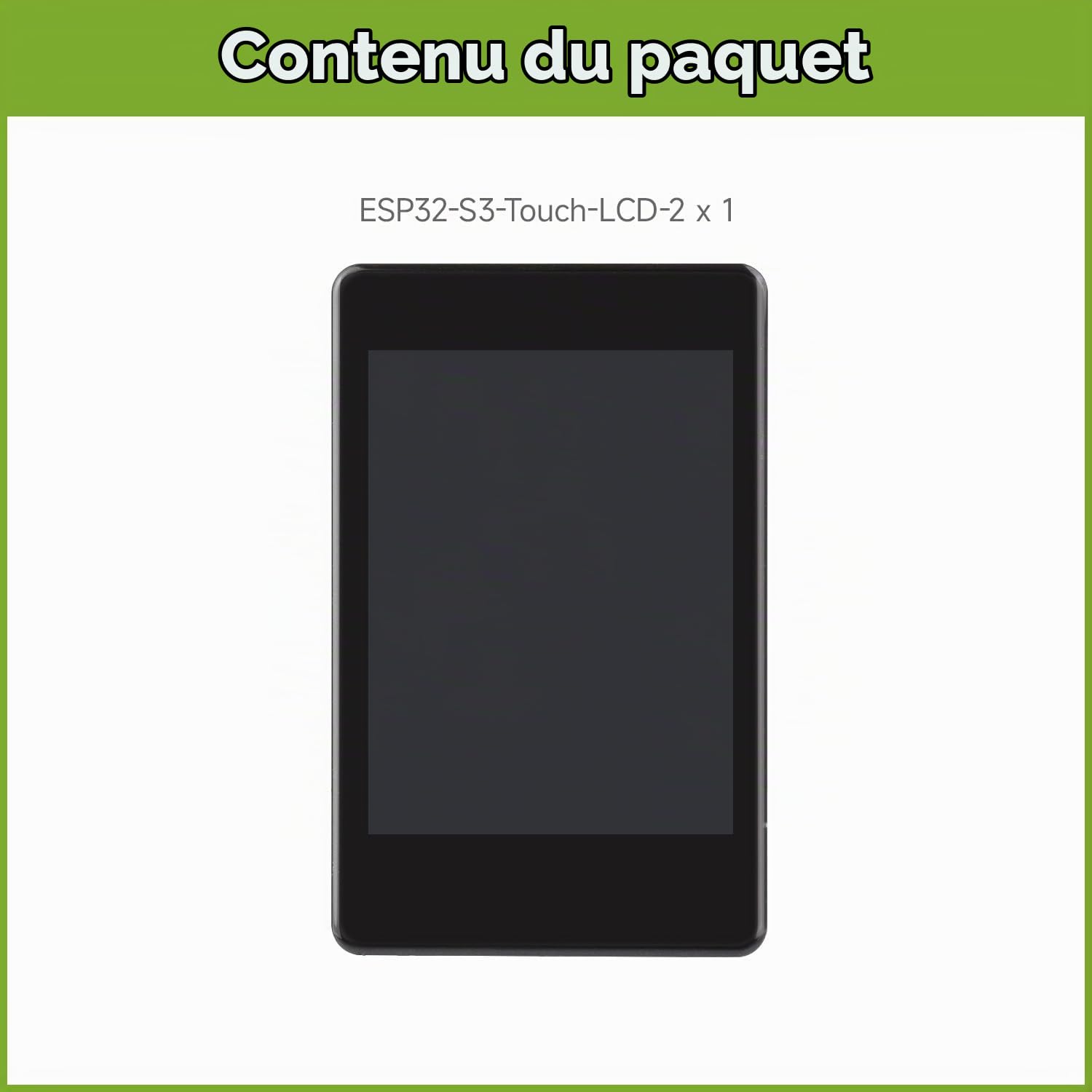

Composants inclus: ESP32-S3-Touch-LCD-2
Système d'exploitation: Linux
Fabricant de CPU: Espressif
Appareils compatibles: OV2640, OV5640

- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna

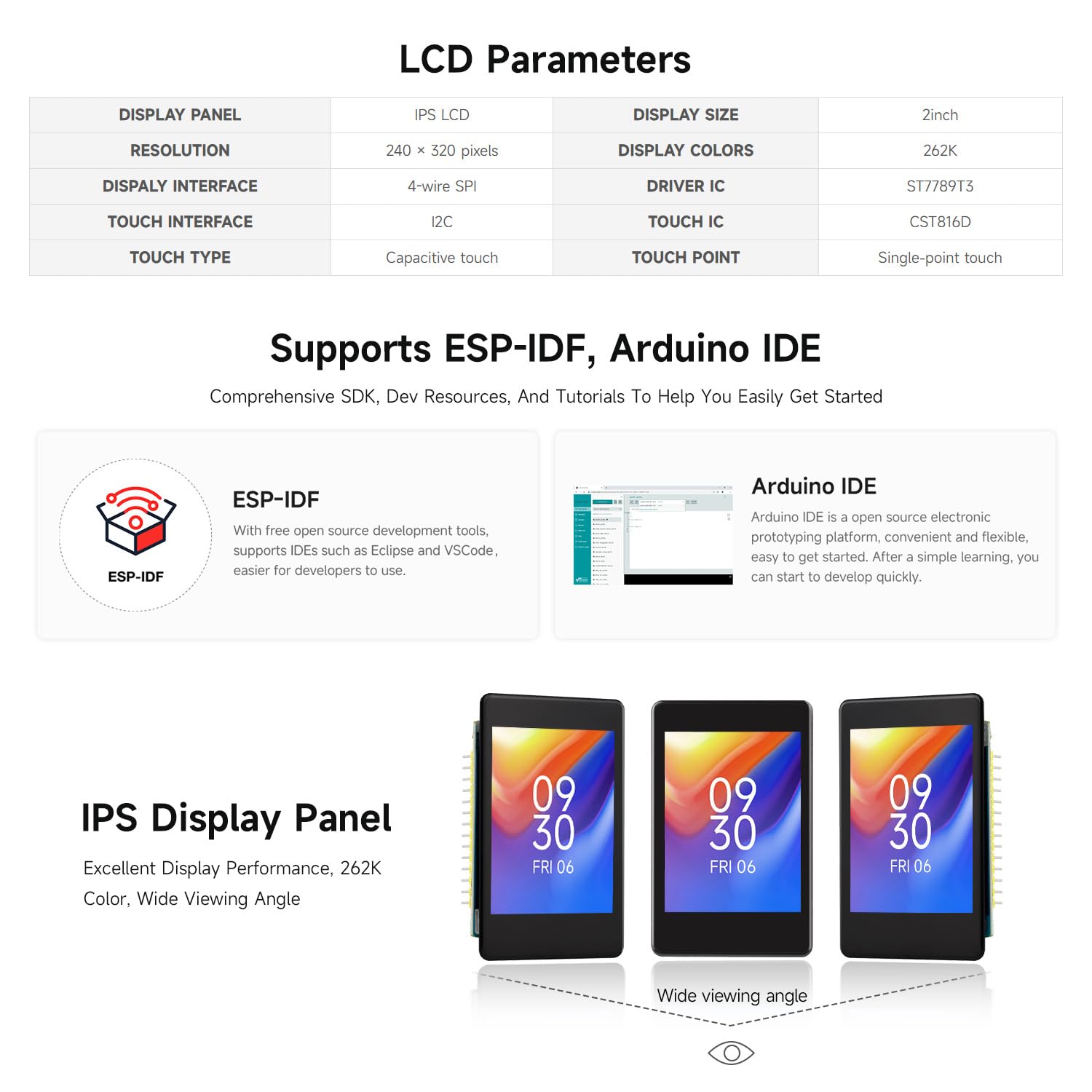

- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, improving device compatibility, easier to use. Onboard 2inch capacitive touch display for clear color picture display, 240 x 320 resolution, 262K color

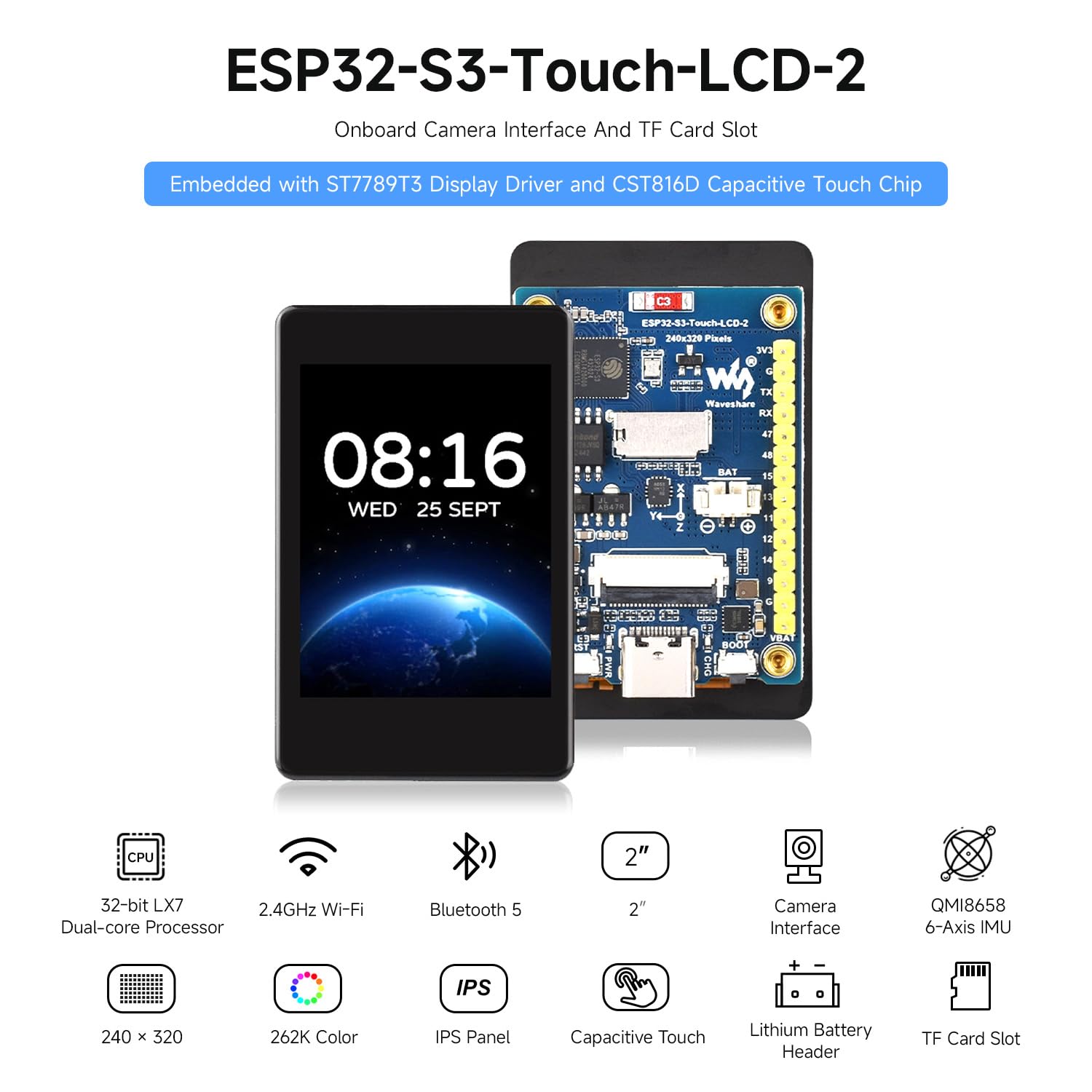

- Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).Onboard 3.7V MX1.25 Lithium batt recharge/discharge header. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use

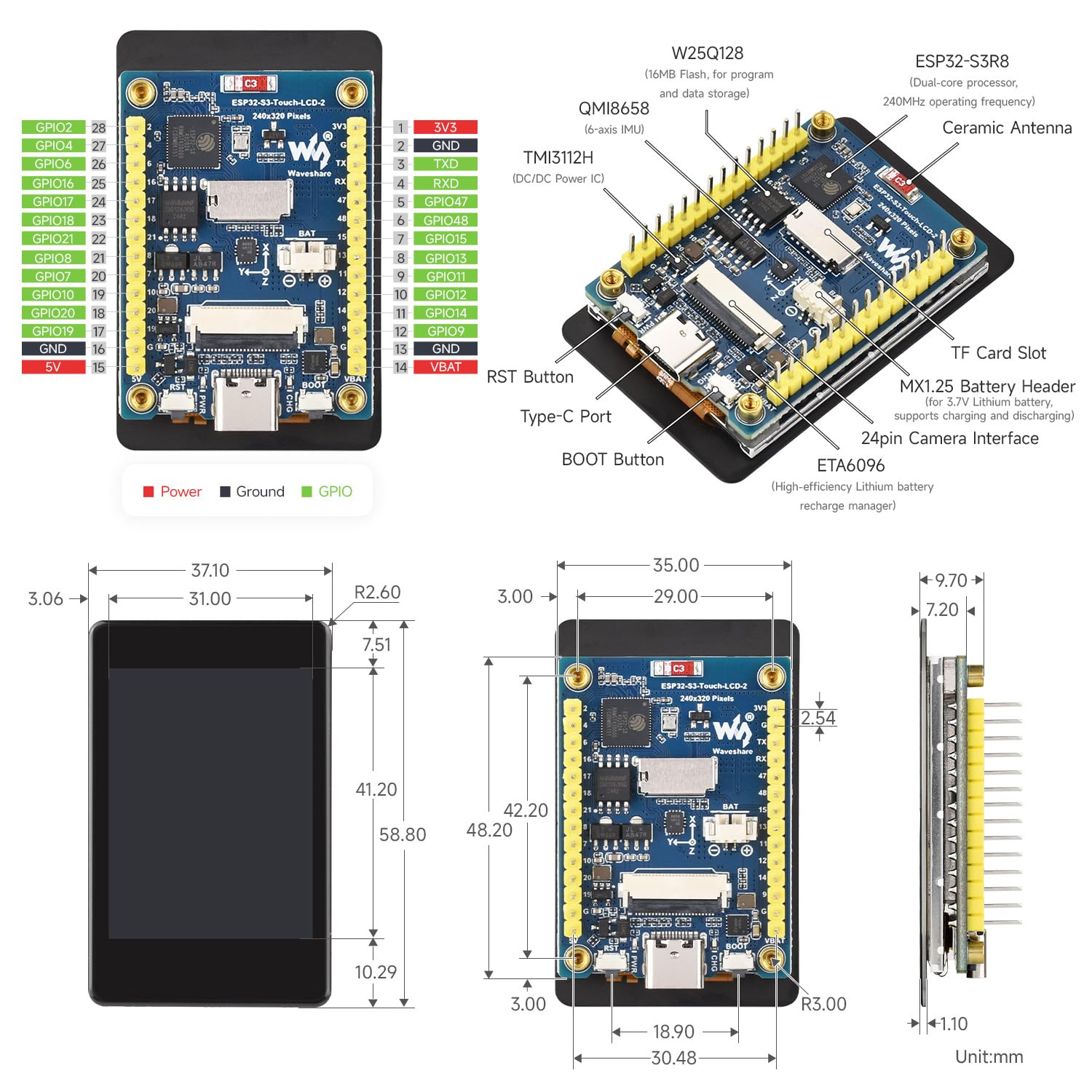

- Onboard TF card slot for external TF card storage of pictures or files. Adapting 22 x GPIO pins for flexible configuration of pin function. Onboard camera interface, compatible with mainstream cameras such as OV2640(NOT Included) and OV5640(NOT Included) for image and video acquisition
