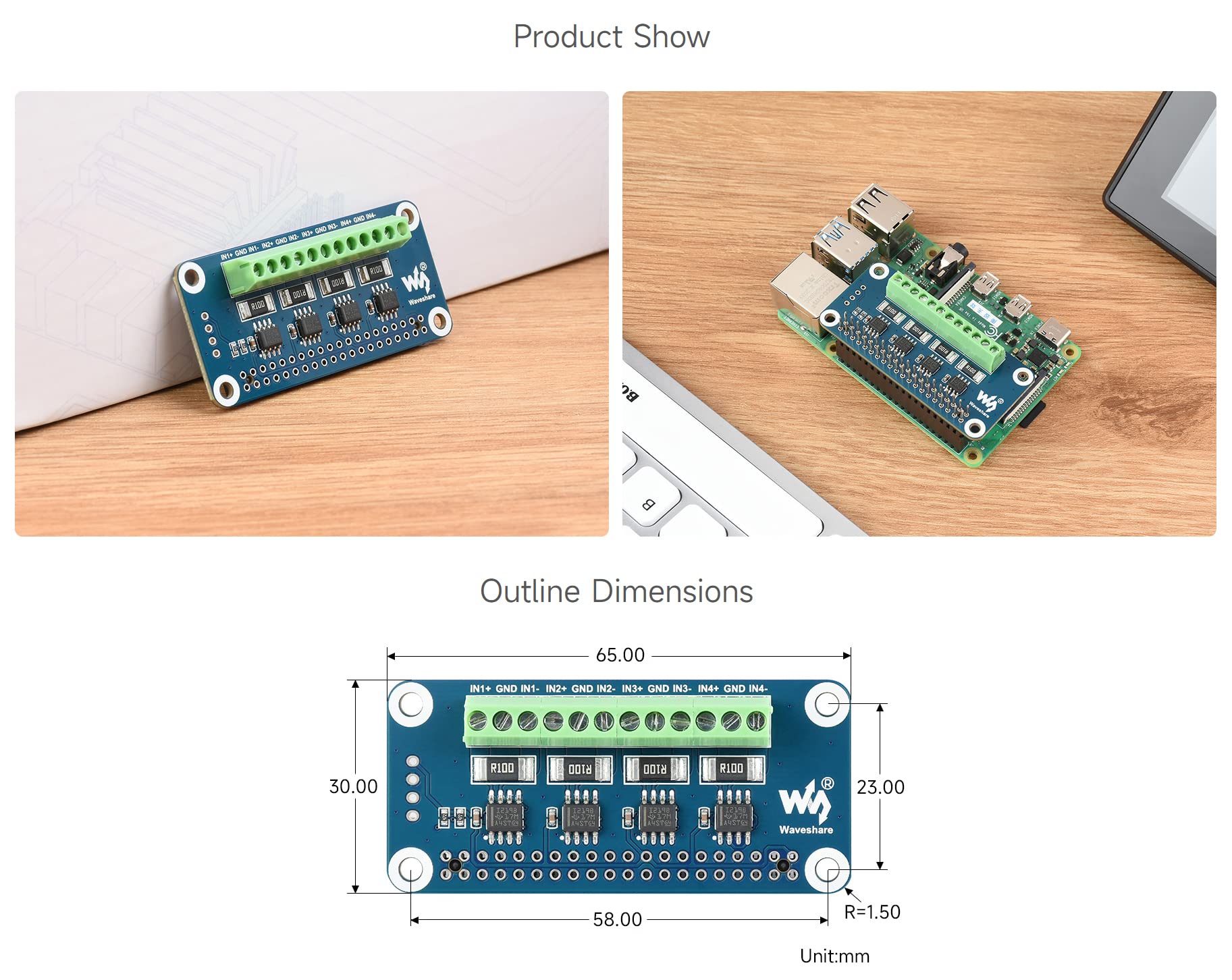

Waveshare 4-ch Current/Voltage/Power Monitor Hat for Raspberry Pi I2C/SMBus Interface

Marque: Waveshare
Nom de modèle: 4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi
Technologie de connectivité: I2C, Infrarouge
Composants inclus: Chapeau moniteur de courant/d'alimentation, 2 têtes de broche femelles 20 broches, lot de vis RPiVoir plus
Fabricant de CPU: VIA
Norme de communication sans fil: Infrarouge
Appareils compatibles: Cartes de la série Raspberry Pi avec un en-tête GPIO 40 broches et des capacités I2C
UPC: 614961957022

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.
- 4-ch monitoring, via I2C/SMBus interface. Onboard 0.1Ω 1％ sampling resistor, allows measuring bi-directional current up to 3.2A.
- Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range.
- Directly calculate and output measured power value through additional multiply register. I2C control pins for connecting with other host boards.
- Comes with development resources and manual (examples for Raspberry Pi/STM32).
